Complete Peltier Plate Temperature Systems
Over 20 years ago, TA Instruments first introduced Peltier Plate temperature control to rheometers. Since then, this core technology has been continuously developed and adapted to meet the expanding needs of our customers. With superior technology designed into five convenient Smart Swap™ models, we offer the highest performing, most versatile, and best accessorized Peltier Plate Temperature Systems available.
Features and Benefits
- Smart Swap™ technology
- Wide Temperature Range: -45 °C to 200 °C
- Widest Continuous Temperature Range
- Accurate Temperature Control: ±0.1 °C
- Plates and Cones up to 40 mm in Diameter
- Large Variety of Geometry Materials and Types
- Fully Accessorized
- Extremely Efficient Solvent Trap
- Purge Gas Cover
- Insulating Thermal Cover
- Camera Viewer Option
Dual Stage Peltier Plate Design
Dual Stage Peltier Plate Design
The Dual Stage Peltier Plate features an innovative design that offers a temperature range of -45 °C to 200 °C with standard counter-cooling options. It integrates a unique stacked Peltier element configuration that provides enhanced low temperature responsiveness and continuous temperature control over the entire operating range with a single heat sink temperature of 2 °C. This eliminates the need to have expensive powerful circulators to obtain temperatures down to this range.

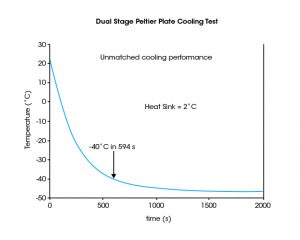

Performance
Performance
Peltier temperature control devices require that they be connected to a heat sink, typically a circulating fluid medium such as water. Most Peltier systems have a continuous temperature range of approximately 100 °C for a single heat sink temperature. The unique design of Peltier Plate systems from TA Instruments extends the continuous range to 220 °C. The benefit of this wide range is that it more than doubles the actual useable temperature range during any single test. The Dual Stage Peltier Plate extends the low temperature limit even further and dramatically improves cooling performance. The figure above shows that this device can reach -40 °C from room temperature in under 10 minutes with a heat sink set at 2 °C.
Purge Gas Cover
Purge Gas Cover
The Purge Gas Environmental Cover is a hard-anodized aluminum two-piece split cover with 4 mm diameter compression fittings. An insulating location ring ensures precise and easy location of the cover. This cover is ideal for purging the sample area with nitrogen to prevent condensation during experiments performed below room temperature or with a humidified purge to keep a sample from drying.
Peltier Plate Camera Viewer
Peltier Plate Camera Viewer
The camera viewer is used in conjunction with streaming video and image capture software. Real-time images can be displayed in the software and an image can be stored with each data point for subsequent viewing during data analysis. The camera viewer is perfect for long experiments with unattended operation for visual inspections of data integrity.
