FOX 200 HT

Measurement Technique

Samples are placed between two plates in the test stack and a temperature gradient is established over the thickness of the material. The plates may be positioned either to a user-defined thickness, or using AutoThickness, in which the instrument automatically moves to establish contact with the sample. In-situ sample thickness is measured with four optical encoders, one at each corner of the plate, providing stable measurements to within 0.025 mm.

Advanced Heat Flux Measurement

At the heart of the measurement is the LaserComp Heat Flux Transducer, designed and manufactured specifically and exclusively for thermal conductivity measurements. The Heat Flux Transducer integrates over the entire active area (75 x 75mm/3sq. in.) to provide a truly representative measurement of the total heat flow. Overall transducer thickness is less than 1 mm, precluding heat flow distortion. A type K thermocouple is bonded in the center of each transducer and both are sealed to ensure consistent precision over the life of the instrument. Because each thermocouple is positioned within 0.1 mm of the sample surface, they provide truly representative readings of the sample’s surface temperature (± .01 °C resolution) and heat flux. The same thermocouples are also used for plate temperature control.

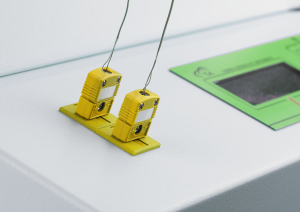

Using the External Thermocouple Option, thermocouples can be attached directly to the sample surfaces for enhanced single-run accuracy for with higher thermal conductivity samples. Auxiliary outlets on the instrument are provided for the thermocouples with this option.

Precision Temperature Control

The FOX series Heat Flow Meters achieve accurate, stable thermal equilibrium quickly through a combination of intimate sample temperature measurement, low mass heaters, and advanced temperature control electronics.

Plate temperature control is based on the same responsive thermocouples in close sample contact as are used for the sample heat flux measurement. An advanced temperature control algorithm monitors the plate temperatures 20 times per second and rapidly brings the system to the selected equilibrium test condition. Plate temperature is controlled to within 0.01 °C by a digital signal processor. A multistage PID algorithm ensures temperature control which is responsive, stable, and prevents set-point overshoot. To achieve this, heater power output from the solid state elements is adjusted every 0.5 s.

Both the top and bottom plates can be heated or cooled, allowing for testing with heat flow up or down. The low thermal mass design of the plates combined with the power of the DSP and power output board enable extremely fast attainment of set-points.

Complete Thermal Conductivity Solution

The FOX series Heat Flow Meters can be operated as either stand-alone instruments, or coupled to a PC for test set-up and data storage. The WinTherm software package is a user-friendly tool for setting experimental parameters, viewing real-time test results, storing, and analyzing data. In either operational mode, the instrument electronics detect equilibrium according to defined conditions, automatically proceeding to the next programmed measurement temperature after a final value is collected. Specific heat measurements are also available, with data collection and calculation guided by the WinTherm software.
